Table Top Lithography Printing Press
 Takach Table Top Litho Press
|
"I have used many different presses and have found Takach to be among the most durable and easiest to operate. I have practiced aluminum plate lithography for many years and know how difficult it is to find ball-grained aluminum plates. Plates such as those from Takach help ensure the success of a lithographic print."
-Jeffrey Sippel
Education Director
Tamarind Institute
Education Director
Tamarind Institute

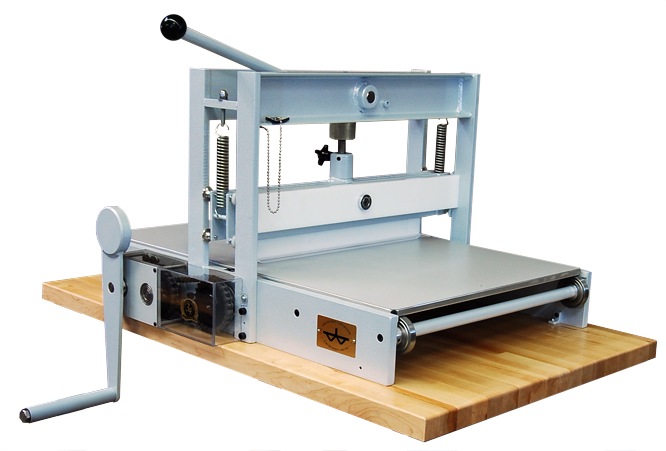

Shown here with support bench. Also available without bench.
 Takach Press Warranty
|
20 Year Warranty
OUR PRESSES ARE BACKED BY A 20 YEAR WRITTEN WARRANTY.TAKACH PRESS CORPORATION STANDS BEHIND THIS WARRANTY 100%.
Table Top Litho Press Information
Pressure System: The pressure system on our Table Top Litho Press is designed after our proven Floor Model pressure System design. The 1" diameter hardened steel pin and permanently lubricated fiber glide bearings are the same parts found on the Floor Model units. A pressure lock knob is provided and the scraper bar housing is designed to use our standard scraper bars listed in this Web Site under Accessories .
Press Bed: Three-quarter inch blanchard ground aluminum tool plate with a phenolic-resin sheet bonded to the top and bottom surface provides a press bed and a plate backer in one. The press bed may be locked in the inking position. Bed stops secure the moving press bed to the press frame. This feature is a must in today's safety conscious work environment.
Frame Unit:
Three-quarter inch by five inch aluminum is paired and machined simultaneously to provide a very accurate and sturdy frame unit. One inch diameter aluminum cross bars bolt the frame together. An aluminum frame provides maximum strength, yet reduces the press's weight considerably, making it a more mobile unit.
Bed Drive System:
Effortless hand cranking is made possible by our double reduction chain and sprocket drive system. Polyethylene wear strips attached to each side frame assure minimal bed friction. "See-thru" chain guard covers allow easy inspection of chain lubrication.
Finish:
All steel press parts are protected by nickel plating, anodizing, high quality paint, or powder coated finish.
TABLE TOP SUPPORT BENCH
Support Bench: A beautiful and durable 1.75" Michigan hard rock maple table top is attached to a steel table frame. Can be used as a Support Table for Table Top Presses or as a Work Bench for the studio. One lower shelf comes standard; a second shelf may be added, as well as roll around casters for mobility. See Options below for pricing of shelves and casters.
| Support/Work Bench | Use with Press Model # | Price | Table Dimensions (W x L x H) |
|---|---|---|---|
| Item #1001 | 1836, 2436, 2448 | $480.00 | 30" x 48" x 30" |
| Item #1003 | 3048, 3060 | $640.00 | 36" x 60" x 30" |
Options for Support / Work Bench:
Item #1220:
Support Bench Swivel Casters (300 lb. load rating each) 3 1/2" tall
$125.00 per set of 4
Item #1016:Support Bench second shelf option (factory installed), Use with Bench #1001
(24" x 48" full width shelf) $140.00 each
Item #1017:
Support Bench second shelf option offers additional storage for paper, etc. (factory installed), Use with Bench # 1003 (24" x 60" full width shelf) $160.00 each
Combo Capable:
All Table Top presses are combo capable at no additional cost!
Combo capable allows you to purchase either an Etching Press or Litho Press and at a later date order the second Pressure Head, giving you a complete Etching and Litho Combination Press.
SIZE SPECIFICATIONS FOR |
|||||
|---|---|---|---|---|---|
| Model/Bed Size | 18x36 | 24x36 | 24x48 | 30x48 | 30x60 |
| Overall Height | 21" | 21" | 21" | 21" | 21" |
| Overall Height with Support Bench |
53" | 53" | 53" | 53" | 53" |
| Frame Length | 36" | 36" | 48" | 48" | 60" |
| Frame Width | 19.75" | 25.75" | 25.75" | 31.75" | 31.75" |
| Frame Height | 5" | 5" | 5" | 5" | 5" |
| Bed Length | 36" | 36" | 48" | 48" | 60" |
| Bed Width | 18" | 24" | 24" | 30" | 30" |
| Bed Height | 5.25" | 5.25" | 5.25" | 5.25" | 5.25" |
| Drum Length | 18" | 24" | 24" | 30" | 30" |
| Drum Diameter | 4.75" | 4.75" | 4.75" | 4.75" | 4.75" |
PRICING FOR TABLE TOP LITHOGRAPHY PRESSES |
|
|---|---|
| Press Model (Bed Size) |
Litho Press (Combo Capable) |
1836 |
Item # 0101836 |
2436 |
Item # 0102436 |
2448 |
Item # 0102448 |
3048 |
Item # 0103048 |
3060 |
Item # 0103060 |
Instruction manual included with each press ordered. Press orders will be shipped motor freight or the customer may pick up the order.
NOW ACCOMMODATES BOTH ALUMINUM PLATE AND LITHO STONES .
Takach Press Table Top Lithography Presses Feature A Pressure System witch permits printing from stone or plate. Please call for additional information.
